| 详细参数 | |||
|---|---|---|---|
| 品牌 | SETTIMA | 型号 | SNF1300R38E6.7W21 |
| 工作原理 | 螺杆 | 叶轮数目 | 单级 |
| 加工定制 | 是 | 公称排量 | 3 |
| 额定压力 | 1.0 | 公称直径 | 5 |
| 材质 | 不锈钢 | 输入功率 | 5 |
| 输出功率 | 5 | 额定转速 | 1450 |
| 容积效率 | 90 | 总效率 | 95 |
| 吸入口直径 | 40 | 出口直径 | 35 |
| 吸入压力 | 1 | 噪声 | 52-63dB(A)之间 |
| 外形尺寸 | 50cm-80cm | 重量 | 75kg |
| 颜色 | 其他 | 产地 | 江苏宿迁 |

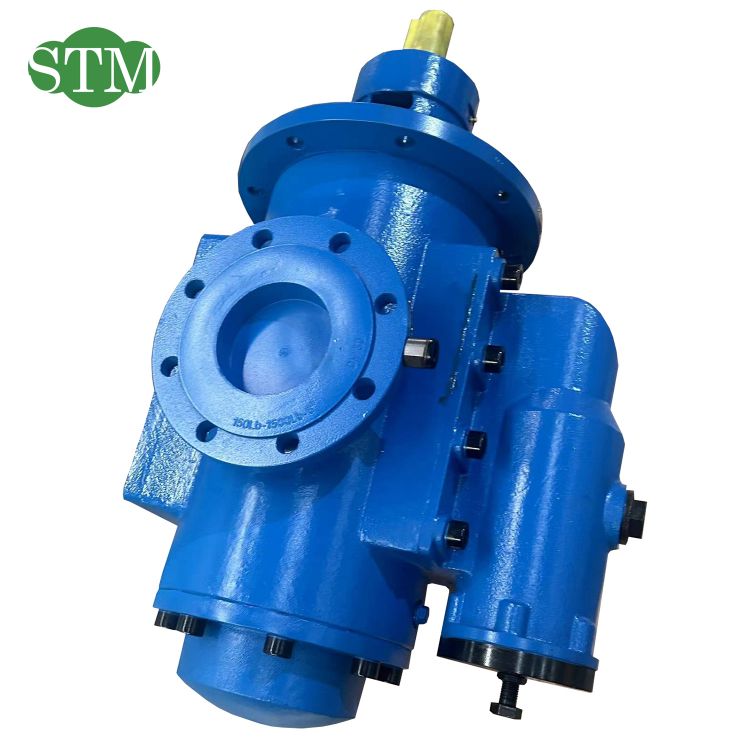

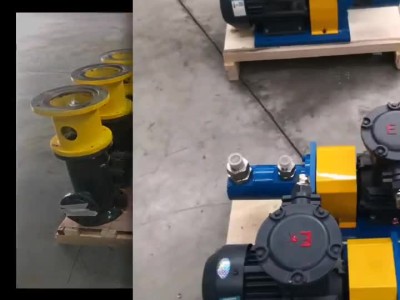

三螺杆泵的从动螺杆的轴向力支撑在后盖或主动螺杆上，并由液压力驱动旋转，从动螺杆由液压力驱动，，主动螺杆和从动螺杆之间没有机械接触，螺杆之间，螺杆和泵套之间皆有油膜保护，因而螺杆型面仅传递液压扭矩，并不受力，也无磨损和机械摩擦，对全部传动零件而言，均由被输送介质形成的油膜保护和润滑。三螺杆泵的主杆的径向旋转跳动由平衡活塞套也可以叫滑动轴承定位，且借助于平衡活塞和轴套的间隙使高压腔和密封腔分开，在密封腔内装有机械密封，无泄漏，腔内的油液回油孔与泵的吸入腔相通，因而不受排出压力的影响。
具有很强的自吸能力，节能低耗，不需要底阀及每次开机前灌油。
二、HSNH三螺杆泵性能特点：
1、效率高>低运营成本
2、轴向平衡转子>轴承没有轴向力
3、只有一个轴密封>易于维护,低成本
4、抗汽蚀能力强>低噪音、 小化的振动
5、简单的设计>合理的价格
6、可设计成无密封磁力或半潜油泵
7、进出口可以通过翻转泵体实现互换>通用性强
8、螺杆泵可以更换的螺杆，衬套，泵芯>螺杆泵零部件全系列通用互换
9、卧式安装三螺杆泵>常用，易于维修更换零部件
三、HSNH三螺杆泵部件主要材料材质：
泵体:铸铁、铸钢、碳钢焊接、不锈钢
衬套:铸铁、球铁、锡青铜、陶瓷、PTFE、高分子复合耐磨材料
螺杆:合金钢、氮化钢、不锈钢、锡磷青铜
四、HSNH三螺杆泵主要技术参数：
1、流量范围：10～10000 L/min (升/分钟) 0.6～600m3/h (立方/小时)
2、压力范围：0～4 Mpa（兆帕）0～40 bar（巴） 0-40 kg/f (公斤力/平方厘米)
3、输送介质粘度范围：2-10000 cst（厘斯）
4、泵送温度：300 ℃ （摄氏度）
5、容许 高转速：3600 r/min （转/分钟）
五、HSNH三螺杆泵应用与流体处理介质：
1、石油天然气炼油厂:
用输送、循环、混合或出口泵为所有类型的清洁、润滑、低粘度和高粘性液体,引擎润滑油，润滑油、原油、燃料油。
2、造船 造
HSN40系列
HSNH40R38W1M HSNF40R38W1M HSNS40R38W1M HSN40R38W1M
HSNH40R46W1M HSNF40R46W1M HSNS40R46W1M HSN40R46W1M
HSNH40R54W1M HSNF40R54W1M HSNS40R54W1M HSN40R54W1M
HSN80系列
HSNH80R36W1M HSNF80R36W1M HSNS80R36W1M HSN80R36W1M
HSNH80R42W1M HSNF80R42W1M HSNS80R42W1M HSN80R42W1M
HSNH80R46W1M HSNF80R46W1M HSNS80R46W1M HSN80R46W1M
HSNH80R54W1M HSNF80R54W1M HSNS80R54W1M HSN80R54W1M
HSW120系列
HSNH120R42W1M HSNF120R42W1M HSNS120R42W1M HSW120R42W1M
HSNH120R46W1M HSNF120R46W1M HSNS120R46W1M HSW120R46W1M
HSNH120R54W1M HSNF120R54W1M HSNS120R54W1M HSW120R54W1M
HSN210系列
HSNH210R40W1M HSNF210R40W1M HSNS210R40W1M HSN210R40W1M
HSNH210R46W1M HSNF210R46W1M HSNS210R46W1M HSN210R46W1M
HSNH210R54W1M HSNF210R54W1M HSNS210R54W1M HSN210R54W1M
HSN280系列
HSNH280R43W1M HSNF280R43W1M HSNS280R43W1M HSN280R43W1M
HSNH280R46W1M HSNF280R46W1M HSNS280R46W1M HSN280R46W1M
HSNH280R54W1M HSNF280R54W1M HSNS280R54W1M HSN280R54W1M
HSN440系列
HSNH440R40W1M HSNF440R40W1M HSNS440R40W1M HSN440R40W1M
HSNH440R42W1M HSNF440R42W1M HSNS440R42W1M HSN440R42W1M
HSNH440R46W1M HSNF440R46W1M HSNS440R46W1M HSN440R46W1M
HSNH440R54W1M HSNF440R54W1M HSNS440R54W1M HSN440R54W1M
HSN660系列
HSNH660R40W1M HSNF660R40W1M HSNS660R40W1M HSN660R40W1M
HSNH660R44W1M HSNF660R44W1M HSNS660R44W1M HSN660R44W1M
HSNH660R46W1M HSNF660R46W1M HSNS660R46W1M HSN660R46W1M
HSNH660R51W1M HSNF660R51W1M HSNS660R51W1M HSN660R51W1M
HSNH660R54W1M HSNF660R54W1M HSNS660R54W1M HSN660R54W1M
HSN940系列
HSNH940R42W1M HSNF940R42W1M HSNS940R42W1M HSN940R42W1M
HSNH940R46W1M HSNF940R46W1M HSNS940R46W1M HSN94R46W1M
HSNH940R50W1M HSNF940R50W1M HSNS940R50W1M HSN940R50W1M
HSNH940R54W1M HSNF940R54W1M HSNS940R54W1M HSN940R54W1M
HSW1300系列
HSNH1300R38W1M HSNF1300R38W1M HSNS1300R38W1M HSW1300R38W1M
HSNH1300R42W1M HSNF1300R42W1M HSNS1300R42W1M HSW1300R42W1M
HSNH1300R46W1M HSNF1300R46W1M HSNS1300R46W1M HSW1300R46W1M
HSNH1300R54W1M HSNF1300R54W1M HSNS1300R54W1M HSW1300R54W1M
HSW1700系列
HSNH1700R42W1M HSNF1700R42W1M HSNS1700R42W1M HSW1700R42W1M
HSNH1700R46W1M HSNF1700R46W1M HSNS1700R46W1M HSW1700R46W1M
HSN2200系列
HSNH2200R42W1M HSNF2200R42W1M HSNS2200R42W1M HSN2200R42W1M
HSNH2200R46W1M HSNF2200R46W1M HSNS2200R46W1M HSN2200R46W1M
HSN2900系列
HSNH2900R40W1M HSNF2900R40W1M HSNS2900R40W1M HSN2900R40W1M
HSNH2900R46W1M HSNF2900R46W1M HSNS2900R46W1M HSN2900R46W1M
六、HSNH三螺杆泵常用型号：
HSNH三螺杆泵常用标准系列
HSNH40-38 HSNH40-46 HSNH40-54 HSNH80-36 HSNH80-42
HSNH80-46 HSNH80-54 HSNH120-42 HSNH120-46 HSNH120-54
HSNH210-36 HSNH210-40 HSNH210-46 HSNH210-54 HSNH280-43
HSNH280-46 HSNH280-54 HSNH440-36 HSNH440-40 HSNH440-46
HSNH440-52 HSNH440-54 HSNH660-40 HSNH660-44 HSNH660-46
HSNH660-52 HSNH660-54 HSNH940-40 HSNH940-42 HSNH940-46
HSNH940-49 HSNH940-50 HSNH940-54 HSNH1300-36 HSNH1300-38
HSNH1300-40 HSNH1300-42 HSNH1300-46 HSNH1300-54 HSNH1700-40
HSNH1700-42 HSNH1700-46 HSNH2200-40 HSNH2200-42 HSNH2200-46
HSNH2900-40 HSNH2900-46 HSNH3600-46 HSNH5300-36 HSNH5300-42
HSNH5300-46 HSNH7400-32 HSNH7400-40 HSNH9400-32 HSNH9400-40
HSNH三螺杆泵轴承内置安装系列
HSNH40-38N HSNH40-46N HSNH40-54N HSNH80-36N HSNH80-42N
HSNH80-46N HSNH80-54N HSNH120-42N HSNH120-46N HSNH120-54N
HSNH210-36N HSNH210-40N HSNH210-46N HSNH210-54N HSNH280-43N
HSNH280-46N HSNH280-54N HSNH440-36N HSNH440-40N HSNH440-46N
HSNH440-52N HSNH440-54N HSNH660-40N HSNH660-44N HSNH660-46N
HSNH660-52N HSNH660-54N HSNH940-40N HSNH940-42N HSNH940-46N
HSNH940-49N HSNH940-50N HSNH940-54N HSNH1300-36N HSNH1300-38N
HSNH1300-40N HSNH1300-42N HSNH1300-46N HSNH1300-54N HSNH1700-40N
HSNH1700-42N HSNH1700-46N HSNH2200-40N HSNH2200-42N HSNH2200-46N
HSNH2900-40N HSNH2900-46N HSNH3600-46N HSNH5300-36N HSNH5300-42N
HSNH5300-46N HSNH7400-32N HSNH7400-40N HSNH9400-32N HSNH9400-40N
HSNH三螺杆泵轴承内置进出口反向安装
HSNH40-38NZ HSNH40-46NZ HSNH40-54NZ HSNH80-36NZ HSNH80-42NZ
HSNH80-46NZ HSNH80-54NZ HSNH120-42NZ HSNH120-46NZ HSNH120-54NZ
HSNH210-36NZ HSNH210-40NZ HSNH210-46NZ HSNH210-54NZ HSNH280-43NZ
HSNH280-46NZ HSNH280-54NZ HSNH440-36NZ HSNH440-40NZ HSNH440-46NZ
HSNH440-52NZ HSNH440-54NZ HSNH660-40NZ HSNH660-44NZ HSNH660-46NZ
HSNH660-52NZ HSNH660-54NZ HSNH940-40NZ HSNH940-42NZ HSNH940-46NZ
HSNH940-49NZ HSNH940-50NZ HSNH940-54NZ HSNH1300-36NZ HSNH1300-38NZ
HSNH1300-40NZ HSNH1300-42NZ HSNH1300-46NZ HSNH1300-54NZ HSNH1700-40NZ
HSNH1700-42NZ HSNH1700-46NZ HSNH2200-40NZ HSNH2200-42NZ HSNH2200-46NZ
HSNH2900-40NZ HSNH2900-46NZ HSNH3600-46NZ HSNH5300-36NZ HSNH5300-42NZ
HSNH5300-46NZ HSNH7400-32NZ HSNH7400-40NZ HSNH9400-32NZ HSNH9400-40NZ
HSNH三螺杆泵轴承外置系列三螺杆泵
HSNH40-38W1 HSNH40-46W1 HSNH40-54W1 HSNH80-36W1 HSNH80-42W1
HSNH80-46W1 HSNH80-54W1 HSNH120-42W1 HSNH120-46W1 HSNH120-54W1
HSNH210-36W1 HSNH210-40W1 HSNH210-46W1 HSNH210-54W1 HSNH280-43W1
HSNH280-46W1 HSNH280-54W1 HSNH440-36W1 HSNH440-40W1 HSNH440-46W1
HSNH440-52W1 HSNH440-54W1 HSNH660-40W1 HSNH660-44W1 HSNH660-46W1
HSNH660-52W1 HSNH660-54W1 HSNH940-40W1 HSNH940-42W1 HSNH940-46W1
HSNH940-49W1 HSNH940-50W1 HSNH940-54W1 HSNH1300-36W1 HSNH1300-38W1
HSNH1300-40W1 HSNH1300-42W1 HSNH1300-46W1 HSNH1300-54W1 HSNH1700-40W1
HSNH1700-42W1 HSNH1700-46W1 HSNH2200-40W1 HSNH2200-42W1 HSNH2200-46W1
HSNH2900-40W1 HSNH2900-46W1 HSNH3600-46W1 HSNH5300-36W1 HSNH5300-42W1
HSNH5300-46W1 HSNH7400-32W1 HSNH7400-40W1 HSNH9400-32W1 HSNH9400-40W1
HSNH三螺杆泵轴承外置进出口反向
HSNH40-38W1Z HSNH40-46W1Z HSNH4Q0-54W1Z HSNH80-36W1Z HSNH80-42W1Z
HSNH80-46W1Z HSNH80-54W1Z HSNH120-42W1Z HSNH120-46W1Z HSNH120-54W1Z
HSNH210-36W1Z HSNH210-40W1Z HSNH210-46W1Z HSNH210-54W1Z HSNH280-43W1Z
HSNH280-46W1Z HSNH280-54W1Z HSNH440-36W1Z HSNH440-40W1Z HSNH440-46W1Z
HSNH440-52W1Z HSNH440-54W1Z HSNH660-40W1Z HSNH660-44W1Z HSNH660-46W1Z
HSNH660-52W1Z HSNH660-54W1Z HSNH940-40W1Z HSNH940-42W1Z HSNH940-46W1Z
HSNH940-49W1Z HSNH940-50W1Z HSNH940-54W1Z HSNH1300-36W1Z HSNH1300-38W1Z
HSNH1300-40W1Z HSNH1300-42W1Z HSNH1300-46W1Z HSNH1300-54W1Z HSNH1700-40W1Z
HSNH1700-42W1Z HSNH1700-46W1Z HSNH2200-40W1Z HSNH2200-42W1Z HSNH2200-46W1Z
HSNH2900-40W1Z HSNH2900-46W1Z HSNH3600-46W1Z HSNH5300-36W1Z HSNH5300-42W1Z
HSNH5300-46W1Z HSNH7400-32W1Z HSNH7400-40W1Z HSNH9400-32W1Z HSNH9400-40W1Z
HSNH三螺杆泵新系列
HSNH40R38 HSNH40R46 HSNH40R54 HSNH80R36 HSNH80R42
HSNH80R46 HSNH80R54 HSNH120R42 HSNH120R46 HSNH120R54
HSNH210R36 HSNH210R40 HSNH210R46 HSNH210R54 HSNH280R43
HSNH280R46 HSNH280R54 HSNH440R36 HSNH440R40 HSNH440R46
HSNH440R52 HSNH440R54 HSNH660R40 HSNH660R44 HSNH660R46
HSNH660R52 HSNH660R54 HSNH940R40 HSNH940R42 HSNH940R46
HSNH940R49 HSNH940R50 HSNH940R54 HSNH1300R36 HSNH1300R38
HSNH1300R40 HSNH1300R42 HSNH1300R46 HSNH1300R54 HSNH1700R40
HSNH1700R42 HSNH1700R46 HSNH2200R40 HSNH2200R42 HSNH2200R46
HSNH2900R40 HSNH2900R46 HSNH3600R46 HSNH5300R36 HSNH5300R42
HSNH5300R46 HSNH7400R32 HSNH7400R40 HSNH9400R32 HSNH9400R40
HSNH三螺杆泵轴承内置安装系列
HSNH40R38N HSNH40R46N HSNH40R54N HSNH80R36N HSNH80R42N
HSNH80R46N HSNH80R54N HSNH120R42N HSNH120R46N HSNH120R54N
HSNH210R36N HSNH210R40N HSNH210R46N HSNH210R54N HSNH280R43N
HSNH280R46N HSNH280R54N HSNH440R36N HSNH440R40N HSNH440R46N
HSNH440R52N HSNH440R54N HSNH660R40N HSNH660R44N HSNH660R46N
HSNH660R52N HSNH660R54N HSNH940R40N HSNH940R42N HSNH940R46N
HSNH940R49N HSNH940R50N HSNH940R54N HSNH1300R36N HSNH1300R38N
HSNH1300R40N HSNH1300R42N HSNH1300R46N HSNH1300R54N HSNH1700R40N
HSNH1700R42N HSNH1700R46N HSNH2200R40N HSNH2200R42N HSNH2200R46N
HSNH2900R40N HSNH2900R46N HSNH3600R46N HSNH5300R36N HSNH5300R42N
HSNH5300R46N HSNH7400R32N HSNH7400R40N HSNH9400R32N HSNH9400R40N
