详细参数
品牌	Hummel	型号	齐全
加工定制	否	材质	金属
耐温	耐高温型	阻燃性	一般
执行质量标准	欧标	产地	其他
颜色	其他

德国胡默尔Hummel不锈钢航空连接器（INOX housing circular connector）
Hummel连接器代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
关键词：胡默尔Hummel尼龙电缆接头，胡默尔Hummel黄铜镀镍电缆接头，胡默尔Hummel不锈钢电缆接头
胡默尔Hummel屏蔽型电缆接头，胡默尔Hummel防爆型电缆接头，德国胡默尔Hummel防爆格兰密封接头
胡默尔Hummel尼龙闷盖，胡默尔Hummel黄铜镀镍堵头，胡默尔Hummel不锈钢堵头/变径接头/防爆堵头
胡默尔Hummel连接器，胡默尔Hummel接线盒，胡默尔Hummel航空插头，胡默尔Hummel尼龙软管接头

Hummel Circular connectors- 胡默尔Hummel航空连接器
Hummel电缆接头代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
Hummel Circular connectors，上海颐品自动化科技有限公司(Hummel代理商)

Hummel Circular connectors（Hummel圆形连接器）

Hummel连接器代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）

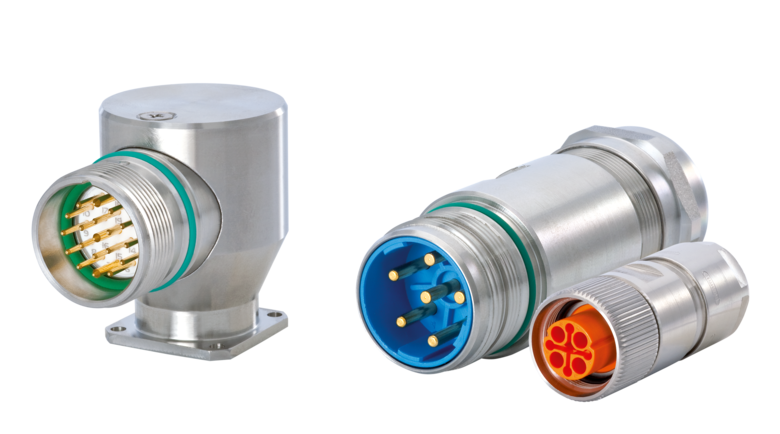

INOX housing circular connector

Stainless steel circular connectors are used wherever the environment is particularly challenging.

This includes rough industrial environments, as well as hygienic areas in the food, chemical and pharmaceutical sectors.

HUMMEL offers stainless steel connectors in the sizes M16 and M23. Numerous casing designs are available.

• M16, M23 and M40
• Stainless steel V4A (AISI 316 L / 1.4404) housing
• Ideal for rough applications
• Suitable for food-related areas, pharmaceutical industry and offshore applications

M16 INOX housing

M16 INOX Cable connector

Housing type	Cable
Material housing	Stainless steel 1.4404 (AISI 316)
Material seals/o-rings	FKM (FPM)

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Version	Shield	Cable Ø	Item-No
Screw		3 – 6 mm	7.814.300.000
Screw	shielded	5 – 9 mm	7.814.400.000
Screw	shielded	8 – 11 mm	7.814.500.000

M16 INOX Coupler connector

Housing type	Coupler
Material housing	Stainless steel 1.4404 (AISI 316)
Material seals/o-rings	FKM (FPM)

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Version	Shield	Cable Ø	Item-No
Screw	shielded	3 – 6 mm	7.824.300.000
Screw	shielded	5 – 9 mm	7.824.400.000
Screw	shielded	8 – 11 mm	7.824.500.000

M16 INOX Panel connector

Material housing	Stainless steel 1.4404 (AISI 316)
Material seals/o-rings	alternatively EPDM, FKM (FPM)

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Installation type	Version	Shield	Item-No
Front wall	Screw	unshielded	7.840.400.000

M23 Power INOX housing

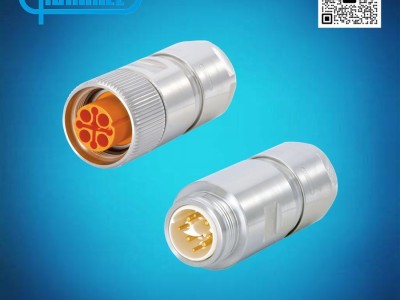

M23 Power INOX cable connector

Housing type	Cable
Material housing	Stainless steel 1.4404 (AISI 316)
Material seals/o-rings	FKM (FPM)

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Version	Shield	Cable Ø	Item-No
Screw	shielded	7 – 12 mm	7.554.500.000
Screw	shielded	11 – 17 mm	7.554.600.000

M23 Power INOX coupler connector

Housing type	Coupler
Material housing	Stainless steel 1.4404 (AISI 316)
Material seals/o-rings	FKM (FPM)

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Version	Shield	Cable Ø	Item-No
Screw	shielded	7 – 12 mm	7.564.500.000
Screw	shielded	11 – 17 mm	7.564.600.000

M23 Power INOX panel connector

Material housing	Stainless steel 1.4404 (AISI 316)
Material seals/o-rings	FKM (FPM)

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Version	Shield	Item-No
Screw	unshielded	7.601.400.000
Screw	unshielded	7.621.400.000
right angled	unshielded	7.630.400.000

M23 Signal INOX housing

M23 Signal INOX cable connector

Housing type	Cable
Material housing	Stainless steel 1.4404 (AISI 316)
Material seals/o-rings	FKM (FPM)

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Version	Shield	Cable Ø	Item-No
Screw		5 – 10 mm	7.140.400.000
Screw		7 – 12 mm	7.140.500.000
Screw	shielded	3 – 7 mm	7.141.300.000
Screw	shielded	5 – 10 mm	7.141.400.000
Screw	shielded	7 – 12 mm	7.141.500.000
Screw	shielded	10 – 14 mm	7.141.600.000

M23 Signal INOX coupler connector

Housing type	Coupler
Material housing	Stainless steel 1.4404 (AISI 316)
Material seals/o-rings	FKM (FPM)

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Version	Shield	Cable Ø	Item-No
Screw		10 – 14 mm	7.240.600.000
Screw	shielded	3 – 7 mm	7.241.300.000
Screw	shielded	5 – 10 mm	7.241.400.000
Screw	shielded	7 – 12 mm	7.241.500.000
Screw	shielded	10 – 14 mm	7.241.600.000

M23 Signal INOX panel connector

Material housing	Stainless steel 1.4404 (AISI 316)
Material seals/o-rings	FKM (FPM)

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Version	Shield	Item-No
with vibration protection	unshielded	7.410.400.000
for pin inserts	unshielded	7.420.400.000
for socket inserts	unshielded	7.421.400.000
right angled	unshielded	7.430.400.000

Accessories for INOX

德国胡默尔Hummel不锈钢航空连接器（INOX housing circular connector）
Hummel连接器代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
关键词：胡默尔Hummel尼龙电缆接头，胡默尔Hummel黄铜镀镍电缆接头，胡默尔Hummel不锈钢电缆接头
胡默尔Hummel屏蔽型电缆接头，胡默尔Hummel防爆型电缆接头，德国胡默尔Hummel防爆格兰密封接头
胡默尔Hummel尼龙闷盖，胡默尔Hummel黄铜镀镍堵头，胡默尔Hummel不锈钢堵头/变径接头/防爆堵头
胡默尔Hummel连接器，胡默尔Hummel接线盒，胡默尔Hummel航空插头，胡默尔Hummel尼龙软管接头

Hummel Circular connectors- 胡默尔Hummel航空连接器
Hummel电缆接头代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
Hummel Circular connectors，上海颐品自动化科技有限公司(Hummel代理商)

Hummel Circular connectors（Hummel圆形连接器）

Hummel连接器代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）

Suitable for Item-No Protection cap Circular connector with external thread, M23 Fast Ethernet PoE, M23 Power, M23 RJ45, M23 Signal 7.000.900.101 Protection cap Circular connector with internal thread, M23 Fast Ethernet PoE, M23 Power, M23 RJ45, M23 Signal 7.000.900.102 Crimp tool M23 Hybrid, M23 Power, M23 Power INOX, M27 Signal 7.000.900.901 Crimp tool M16, M16 INOX, M23 Signal, M23 Signal INOX, M27 Signal 7.000.900.904 Protection cap Circular connector with external thread, M16 7.000.980.161 Protection cap Circular connector with internal thread, M16 7.000.980.162 Assembly tool M23 Signal INOX 7.010.900.127 Protection cap Circular connector with external thread, M23 Power INOX, M23 Signal INOX 7.010.904.102 Protection cap Circular connector with internal thread, M23 Power INOX, M23 Signal INOX 7.010.904.103 Protection cap Circular connector with external thread, M16, M16 INOX 7.010.904.162 Protection cap Circular connector with internal thread, M16, M16 INOX 7.010.904.163 Protection cap Circular connector with internal thread, M23 Hybrid, M23 Power, M23 Power INOX, M23 Signal INOX 7.010.904.183 Protection cap with rope Circular connector with external thread, M23 Power INOX, M23 Signal INOX 7.010.9S4.102 Protection cap with rope Circular connector with external thread, M23 Power INOX, M23 Signal INOX 7.010.9S4.103 Protection cap with rope Circular connector with external thread, M16 INOX 7.010.9S4.162 Protection cap with rope Circular connector with internal thread, M16 INOX 7.010.9S4.163 Protection cap with rope Circular connector with internal thread, M23 Hybrid, M23 Power, M23 Power INOX, M23 Signal INOX 7.010.9S4.183
