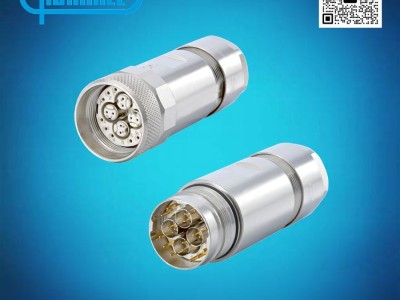

M23 Fast Ethernet PoE
This couple connector is capable of transferring the highest data rates, up to the giga range.

This enormous density in an M23 casing is made possible by the use of four Twinax inserts for data transfer.

Five separate shields prevent crosstalk. The M23 is designed for robust deployment in industrial environments.

M23 Fast Ethernet PoE housing

M23 Fast Ethernet PoE cable connector

Housing type	Cable
Material housing	brass, Zinc Die Cast
Material housing surface	Nickel

Temperature range	-40°C to +125°C
Protection class	IP 67

Version	Shield	Cable Ø	Item-No
Screw	shielded	11 – 17 mm	7.108.600.000

M23 Fast Ethernet PoE coupler connector

Housing type	Coupler
Material housing	brass, Zinc Die Cast
Material housing surface	Nickel

Temperature range	-40°C to +125°C
Protection class	IP 67

Version	Shield	Cable Ø	Item-No
Screw	shielded	11 – 17 mm	7.208.600.000

M23 Fast Ethernet PoE panel connector

Material housing	Zinc Die Cast
Material housing surface	Nickel
Seal type	O-Ring

Material seals/o-rings	NBR
Protection class	IP 67
Temperature range	-40°C to +125°C

Installation type	Shield	Item-No
Front wall	unshielded	7.408.000.000
Rear wall	unshielded	7.468.000.000

M23 Fast Ethernet PoE right angle cable connector

Material housing	brass, Zinc Die Cast
Material housing surface	Nickel
Material seals/o-rings	NBR

Temperature range	-40°C to +125°C
Protection class	IP 67

Shield	Cable Ø	Item-No
shielded	11 – 17 mm	7.308.600.000

M23 Fast Ethernet PoE inserts

Material insulating body	PA 6, PBT
Nominal current data	2 A
Nominal current signal	8 A
Nominal voltage at degree of pollution 3 data	60 V~

Nominal voltage at degree of pollution 3 signal	160 V~
Temperature range	-40°C to +125°C
Degree of Protection	3
Minimum mating cycles	> 1000

Characteristic of connection	Number of poles	Pole picture	Insert	Item-No
Crimp	20	4 x 2 + 12	Pin	7.003.920.101
Crimp	20	4 x 2 + 12	Socket	7.003.920.102

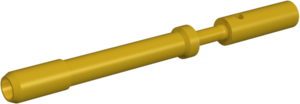

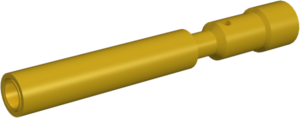

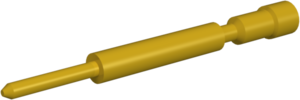

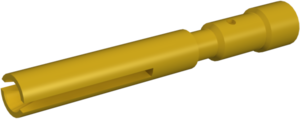

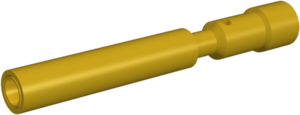

M23 Fast Ethernet PoE contacts

	Crimp contact	Crimp range	Item-No
	Crimp socket signal 1 mm machined	0.34 – 1 mm²	7.010.901.002
	Crimp socket signal 1 mm machined	0.08 – 0.56 mm²	7.010.901.012
	Crimp socket signal 1 mm machined	0.75 – 1.5 mm²	7.010.901.022
	Crimp pin signal 1 mm machined	0.75 – 1.5 mm²	7.010.901.045
	Crimp socket signal 1 mm machined	1 – 1.75 mm²	7.010.901.046
	Crimp pin signal 1 mm machined	0.14 – 1 mm²	7.010.901.049
	Crimp socket signal 0,6 mm machined	0.08 – 0.34 mm²	7.010.980.602
	Crimp pin signal 0,6 mm machined	0.08 – 0.34 mm²	7.010.980.641

M23 Fast Ethernet PoE accessories
