详细参数
品牌	Hummel	型号	齐全
加工定制	否	材质	金属
耐温	耐高温型	阻燃性	一般
执行质量标准	欧标	产地	其他
颜色	其他

德国胡默尔Hummel航空连接器（M23 RJ45 circular connector）
Hummel连接器代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
关键词：胡默尔Hummel尼龙电缆接头，胡默尔Hummel黄铜镀镍电缆接头，胡默尔Hummel不锈钢电缆接头
胡默尔Hummel屏蔽型电缆接头，胡默尔Hummel防爆型电缆接头，德国胡默尔Hummel防爆格兰密封接头
胡默尔Hummel尼龙闷盖，胡默尔Hummel黄铜镀镍堵头，胡默尔Hummel不锈钢堵头/变径接头/防爆堵头
胡默尔Hummel连接器，胡默尔Hummel接线盒，胡默尔Hummel航空插头，胡默尔Hummel尼龙软管接头

Hummel Circular connectors- 胡默尔Hummel航空连接器
Hummel电缆接头代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
Hummel Circular connectors，上海颐品自动化科技有限公司(Hummel代理商)

Hummel Circular connectors（Hummel圆形连接器）

Hummel连接器代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）

M23 RJ45

In the M23 RJ45 connector system, RJ45 patch cables are chambered within a sturdy bl casing.

In this way, the traditional “bephone plug” is given an industrial grade housing that fulfils the

protection classes IP67. Patch cables are pre-assembled according to customer requests,

and integrated in the M23 connector.

M23 RJ45 housing

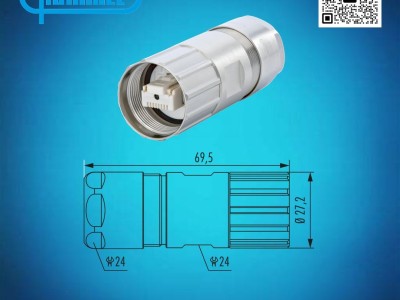

M23 RJ45 cable connector

Housing type	Cable
Material housing	brass, Zinc Die Cast
Material housing surface	Nickel

Seal type	O-Ring
Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Version	Shield	Cable Ø	Item-No
Screw	unshielded	3 – 7 mm	7R10400000

M23 RJ45 coupler connector

Housing type	Coupler
Material housing	brass, Zinc Die Cast
Material housing surface	Nickel

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Version	Shield	Cable Ø	Item-No
Screw	unshielded	3 – 7 mm	7R20408000

M23 RJ45 panel connector

Material housing	brass, Zinc Die Cast
Material housing surface	Nickel
Seal type	O-Ring

Material seals/o-rings	FKM (FPM), NBR
Protection class	IP 67, IP 69 K
Temperature range	-40°C to +125°C

Installation type	Version	Shield	Cable Ø	Item-No
Front wall	-	unshielded	-	7R40008000
Front wall	-	unshielded	-	7R40082000
Front wall	-	unshielded	-	7R41008000
Front wall	-	unshielded	-	7R42008000
-	right angled	unshielded	-	7R43108000
Rear wall	with vibration protection	unshielded	-	7R45008000
Rear wall	with vibration protection	unshielded	-	7R45082000
Rear wall	-	unshielded	3 – 7 mm	7R47408000
Rear wall	-	unshielded	-	7R50008000
Rear wall	-	unshielded	3 – 7 mm	7R52408000

M23 RJ45 accessories

德国胡默尔Hummel航空连接器（M23 RJ45 circular connector）
Hummel连接器代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
关键词：胡默尔Hummel尼龙电缆接头，胡默尔Hummel黄铜镀镍电缆接头，胡默尔Hummel不锈钢电缆接头
胡默尔Hummel屏蔽型电缆接头，胡默尔Hummel防爆型电缆接头，德国胡默尔Hummel防爆格兰密封接头
胡默尔Hummel尼龙闷盖，胡默尔Hummel黄铜镀镍堵头，胡默尔Hummel不锈钢堵头/变径接头/防爆堵头
胡默尔Hummel连接器，胡默尔Hummel接线盒，胡默尔Hummel航空插头，胡默尔Hummel尼龙软管接头

Hummel Circular connectors- 胡默尔Hummel航空连接器
Hummel电缆接头代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
Hummel Circular connectors，上海颐品自动化科技有限公司(Hummel代理商)

Hummel Circular connectors（Hummel圆形连接器）

Hummel连接器代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）

Suitable for Item-No Protection cap Circular connector with external thread, M23 Fast Ethernet PoE, M23 Power, M23 RJ45, M23 Signal 7.000.900.101 Protection cap Circular connector with internal thread, M23 Fast Ethernet PoE, M23 Power, M23 RJ45, M23 Signal 7.000.900.102 Protection cap Circular connector with external thread, M23 Fast Ethernet PoE, M23 Hybrid, M23 Power, M23 RJ45, M23 Signal (except TWILOCK/-S) 7.010.900.102 - Cable / coupler connector (except TWILOCK/-S) 7.010.900.128 Protection cap Circular connector with internal thread (except TWILOCK/-S), M23 Fast Ethernet PoE, M23 Hybrid, M23 Power, M23 RJ45, M23 Signal (except TWILOCK/-S) 7.010.900.183 Screwdriving tool M12, M12 Power, M16, M23 Hybrid, M23 Power, M23 RJ45, M23 Signal 7.010.900.190 Upper part M23 Hybrid, M23 Power, M23 RJ45, M23 Signal 7.010.900.192 - Polyamide DN 16 7.010.900.204 - Polyamide DN 12 7.010.900.205 - Polyamide DN 20 7.010.900.206 - Polyamide DN 14 7.010.900.207 - Polyamide DN 17 7.010.900.209 Protection cap with chain Circular connector with external thread, M23 Fast Ethernet PoE, M23 Hybrid, M23 Power, M23 RJ45, M23 Signal (except TWILOCK/-S) 7.010.9S0.702 Protection cap with chain Circular connector with internal thread (except TWILOCK/-S), M23 Fast Ethernet PoE, M23 Hybrid, M23 Power, M23 RJ45, M23 Signal (except TWILOCK/-S) 7.010.9S0.783 Protection cap with chain Circular connector with external thread, M23 Fast Ethernet PoE, M23 Hybrid, M23 Power, M23 RJ45, M23 Signal (except TWILOCK/-S) 7.010.9S1.002 Protection cap with chain Circular connector with internal thread (except TWILOCK/-S), M23 Fast Ethernet PoE, M23 Hybrid, M23 Power, M23 RJ45 7.010.9S1.083 - M23 RJ45 7MRJ450007 T13 crimping tool RJ45 M23 RJ45 A7RJ-001T13 T30 assembly tool RJ45 M23 RJ45 A7RJ-001T30 - M23 RJ45 A7RJ-081M41 - M23 RJ45 A7RJ-081M6A - M23 RJ45 A7RJ-821M51
