Hybrid circular connectors

Single cable solutions with hybrid connectors (OCT - One Cable Technology) are becoming increasingly important

in automation and robotics. They transmit power, signals and Ethernet in one connection. This saves assembly time,

space and money. A characteristic feature of HUMMEL AG connectors is their absolute suitability for industrial applications.

Metal housings protect the sensitive and impact-sensitive contact inserts safely and reliably.

The various housing designs, inserts and contacts can be combined and thus offer the user a wide range of variants.

Hummel M40 Hybrid

The M 40 Hybrid combines the power of the standard series with the versatility of a hybrid connector.

This circular connector transmits power up to 55 A and parallel data rates up to 100 Mbit/s. A special feature are

the high electrical characteristics of the signal contacts A/B.

They enable users in servo tech¬nology to achieve transmission rates of up to 300 V/7 A for brakes.

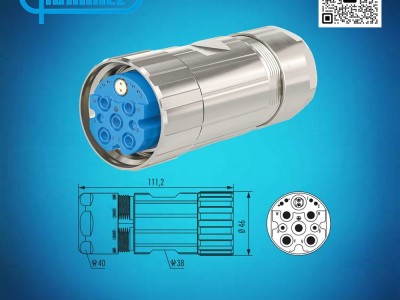

M40 Hybrid cable connector

Version	Shield	Cable Ø	Number of poles	Pole picture	Item-No
Screw	shielded	13 – 18 mm	13	2 + 6 + 4 + PE	7.710.662.000
Screw	shielded	13 – 18 mm	17	6 + 6 + 4 + PE	7.710.666.000
Screw	shielded	17 – 24 mm	13	2 + 6 + 4 + PE	7.710.762.000
Screw	shielded	17 – 24 mm	17	6 + 6 + 4 + PE	7.710.766.000
Screw	shielded	21 – 28 mm	13	2 + 6 + 4 + PE	7.710.862.000
Screw	shielded	21 – 28 mm	17	6 + 6 + 4 + PE	7.710.866.000
TWILOCK-S	shielded	13 – 18 mm	13	2 + 6 + 4 + PE	7.716.662.00S
TWILOCK-S	shielded	13 – 18 mm	17	6 + 6 + 4 + PE	7.716.666.00S
TWILOCK-S	shielded	17 – 24 mm	13	2 + 6 + 4 + PE	7.716.762.00S
TWILOCK-S	shielded	17 – 24 mm	17	6 + 6 + 4 + PE	7.716.766.00S
TWILOCK-S	shielded	21 – 28 mm	13	2 + 6 + 4 + PE	7.716.862.00S
TWILOCK-S	shielded	21 – 28 mm	17	6 + 6 + 4 + PE	7.716.866.00S

M40 Hybrid coupler connector

Version	Shield	Cable Ø	Number of poles	Pole picture	Item-No
TWILOCK-S	shielded	13 – 18 mm	13	2 + 6 + 4 + PE	7.720.662.00S
TWILOCK-S	shielded	13 – 18 mm	13	6 + 6 + 4 + PE	7.720.666.00S
TWILOCK-S	shielded	17 – 24 mm	13	2 + 6 + 4 + PE	7.720.762.00S
TWILOCK-S	shielded	17 – 24 mm	17	6 + 6 + 4 + PE	7.720.766.00S
TWILOCK-S	shielded	21 – 28 mm	13	2 + 6 + 4 + PE	7.720.862.00S
TWILOCK-S	shielded	21 – 28 mm	17	6 + 6 + 4 + PE	7.720.866.00S

M40 Hybrid panel connector

Version	Shield	Number of poles	Pole picture	Item-No
right angled, TWILOCK-S	unshielded	13	2 + 6 + 4 + PE	7.749.062.00S
right angled, TWILOCK-S	unshielded	17	6 + 6 + 4 + PE	7.749.066.00S

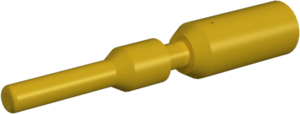

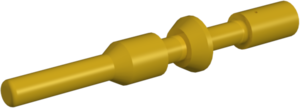

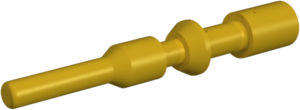

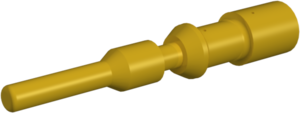

M40 Hybrid contacts

	Crimp contact	Crimp range	Item-No
	Crimp pin data 0,6 mm machined	0.05 – 0.34 mm²	7.010.960.611
	Crimp socket data 0,6 mm machined	0.05 – 0.34 mm²	7.010.960.612
	Crimp pin data/signal 1 mm machined	0.14 – 1 mm²	7.015.961.001
	Crimp socket data/signal 1 mm machined	0.14 – 1 mm²	7.015.961.002
	Crimp pin signal 1 mm machined	0.75 – 1.5 mm²	7.015.961.011
	Crimp socket signal 1 mm machined	0.75 – 1.5 mm²	7.015.961.012
	Crimp pin power 3,6 mm machined	1.5 – 4 mm²	7.015.963.601
	Crimp socket power 3,6 mm machined	1.5 – 4 mm²	7.015.963.602
	Crimp pin power 3,6 mm machined	6 – 6 mm²	7.015.963.611
	Crimp socket power 3,6 mm machined	6 – 6 mm²	7.015.963.612
	Crimp pin power 3,6 mm machined	10 – 10 mm²	7.015.963.621
	Crimp socket power 3,6 mm machined	10 – 10 mm²	7.015.963.622
	Crimp pin power 3,6 mm machined	16 – 16 mm²	7.015.963.631
	Crimp socket power 3,6 mm machined	16 – 16 mm²	7.015.963.632

M40 Hybrid accessories

	Debion	Suitable for	Item-No
	Crimp tool	Crimp contacts 16 mm²	7.000.900.903
	Crimp tool	M23 Hybrid, M40 Hybrid	7.000.900.909
	Crimping tool shielding sleeves	M40 Hybrid	7.000.900.913
	Crimp head contacts	7000900920	7.000.900.919

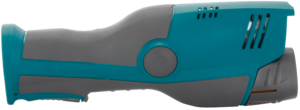

	Battery crimp tool	M40 Hybrid, M40 Power	7.000.900.920
	Li-Ion battery 12 V / 2 Ah	7000900920	7.000.900.923
	Locator	7000900920	7.010.900.153
	Locator	M40 Hybrid	7.010.900.157
	Locator	M23 Hybrid, M40 Hybrid, M40 Power	7.010.900.158
	Assembly tool	M40 Hybrid, M40 Power	7.010.900.194
	Protection cap	Circular connector with external thread, M40 Power	7.015.900.102
	Protection cap	Circular connector with internal thread, M40 Power	7.015.900.103
	Protection cap with rope	Circular connector with external thread, M40 Power	7.015.9S1.002
	Protection cap with rope	Circular connector with internal thread, M40 Power	7.015.9S1.003
