详细参数
品牌	Hummel	型号	齐全
加工定制	否	材质	金属
耐温	耐高温型	阻燃性	一般
执行质量标准	欧标	产地	其他
颜色	其他

德国胡默尔Hummel航空连接器（M12 Power connector）
Hummel电缆接头代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
关键词：胡默尔Hummel尼龙电缆接头，胡默尔Hummel黄铜镀镍电缆接头，胡默尔Hummel不锈钢电缆接头
胡默尔Hummel屏蔽型电缆接头，胡默尔Hummel防爆型电缆接头，德国胡默尔Hummel防爆格兰密封接头
胡默尔Hummel尼龙闷盖，胡默尔Hummel黄铜镀镍堵头，胡默尔Hummel不锈钢堵头/变径接头/防爆堵头
胡默尔Hummel连接器，胡默尔Hummel接线盒，胡默尔Hummel航空插头，胡默尔Hummel尼龙软管接头


Circular connectors- 胡默尔Hummel航空连接器
Hummel电缆接头代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
Hummel Circular connectors，上海颐品自动化科技有限公司(Hummel代理商)

M12 Power connector

The M12 Power marks a milestone in miniaturisation. This circular connector is characterised by very

high power transfer (up to 630V and 16A) combined with a compact design. Its sturdiness is particularly

noteworthy. M12 Power works reliably in temperature ranges up to 125°C. K, L, S and T codings are available.

M12 Power cable connector

Housing type	Cable
Material housing	brass, Zinc Die Cast
Material housing surface	Nickel

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Coding	Version	Shield	Cable Ø	Item-No
K, L	Screw	shielded	3 – 6 mm	A712-7K10300000
K, L	Screw	shielded	5 – 9 mm	A712-7K10400000
K, L	Screw	shielded	8 – 11 mm	A712-7K10500000
S, T	Screw	shielded	3 – 6 mm	A712-7S10300000
S, T	Screw	shielded	5 – 9 mm	A712-7S10400000
S, T	Screw	shielded	8 – 11 mm	A712-7S10500000

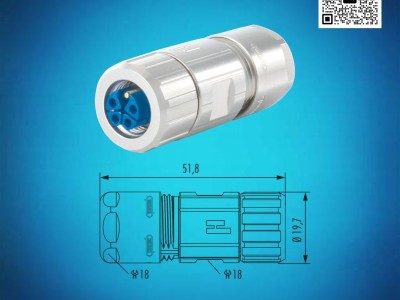

M12 Power coupler connector

Housing type	Coupler
Material housing	brass, Zinc Die Cast
Material housing surface	Nickel

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Coding	Version	Shield	Cable Ø	Item-No
K, L	Screw	shielded	3 – 6 mm	A712-7K20300000
K, L	Screw	shielded	5 – 9 mm	A712-7K20400000
K, L	Screw	shielded	8 – 11 mm	A712-7K20500000
S, T	Screw	shielded	3 – 6 mm	A712-7S20300000
S, T	Screw	shielded	5 – 9 mm	A712-7S20400000
S, T	Screw	shielded	8 – 11 mm	A712-7S20500000

M12 Power panel connector

Material housing	Copper-Zinc alloy
Material housing surface	Nickel
Seal type	Seal

Material seals/o-rings	FKM (FPM), NBR
Protection class	IP 67, IP 69 K
Temperature range	-40°C to +125°C

Coding	Installation type	Shield	Item-No
K, L	-	unshielded	A712-7K40000000
K, L	Front wall	unshielded	A712-7K42000000
K, L	Front wall	unshielded	A712-7K4200000G
K, L	Front wall	unshielded	A712-7K44000000
K, L	Front wall	unshielded	A712-7K4400000G
K, L	Rear wall	unshielded	A712-7K50000000
K, L	Rear wall	unshielded	A712-7K51000000
S, T	-	unshielded	A712-7S40000000
S, T	Front wall	unshielded	A712-7S42000000
S, T	Front wall	unshielded	A712-7S4200000G
S, T	Front wall	unshielded	A712-7S42200000
S, T	Front wall	unshielded	A712-7S44000000
S, T	Front wall	unshielded	A712-7S4400000G
S, T	Front wall	unshielded	A712-7S44200000
S, T	Rear wall	unshielded	A712-7S50000000
S, T	Rear wall	unshielded	A712-7S51000000

M12 Power right angle cable connector

Material housing	brass, Zinc Die Cast
Material housing surface	Nickel
Material seals/o-rings	HNBR, NBR

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Coding	Shield	Cable Ø	Item-No
K, L	shielded	3 – 6 mm	A712-7K30300000
K, L	shielded	5 – 9 mm	A712-7K30400000
K, L	shielded	8 – 11 mm	A712-7K30500000
S, T	shielded	3 – 6 mm	A712-7S30300000
S, T	shielded	5 – 9 mm	A712-7S30400000
S, T	shielded	8 – 11 mm	A712-7S30500000

M12 Power right angle coupler connector

Material housing	brass, Zinc Die Cast
Material housing surface	Nickel
Material seals/o-rings	HNBR, NBR

Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Coding	Shield	Cable Ø	Item-No
K, L	shielded	3 – 6 mm	A712-7K31300000
K, L	shielded	5 – 9 mm	A712-7K31400000
K, L	shielded	8 – 11 mm	A712-7K31500000
S, T	shielded	3 – 6 mm	A712-7S31300000
S, T	shielded	5 – 9 mm	A712-7S31400000
S, T	shielded	8 – 11 mm	A712-7S31500000

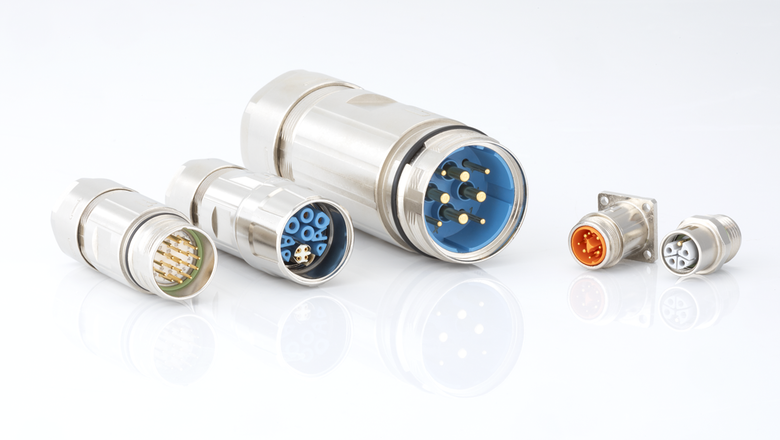

Circular connectors

HUMMEL circular connectors are used in many industrial applications. The product range covers sizes M8 to M40.

Whether power or signal connectors, Industrial Ethernet or customer-specific special applications - HUMMEL offers

the right solution for every requirement. Quick-release fastener variants, angle, coupling and appliance plugs for the

most varied installation situations round off the respective product families; they are also available as INOX versions.

• Highest power density
• Cable entry 3 – 11 mm
• Power transmission up to 630 V and 16 A
• Robust bl housing, optionally in stainless steel
• EMC shielding as standard
• Codes K, L, S, T
• Freely configurable, compact designs
• Moulded cables
