详细参数
品牌	Hummel	型号	齐全
加工定制	否	材质	金属
耐温	耐高温型	阻燃性	一般
执行质量标准	欧标	产地	其他
颜色	其他

德国胡默尔Hummel黄铜镀镍防爆堵头（Plug V-Ms-Ex with o-ring）
Hummel电缆接头代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
关键词：胡默尔Hummel尼龙电缆接头，胡默尔Hummel黄铜镀镍电缆接头，胡默尔Hummel不锈钢电缆接头
胡默尔Hummel屏蔽型电缆接头，胡默尔Hummel防爆型电缆接头，德国胡默尔Hummel防爆格兰密封接头
胡默尔Hummel尼龙闷盖，胡默尔Hummel黄铜镀镍堵头，胡默尔Hummel不锈钢堵头/变径接头/防爆堵头
胡默尔Hummel连接器，胡默尔Hummel接线盒，胡默尔Hummel航空插头，胡默尔Hummel尼龙软管接头


Hummel Cable glands- 胡默尔Hummel电缆接头系列
Hummel电缆接头代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
Hummel Ex e cable glands
Metal for hazardous areas are available in brass (nickel-plated) and stainless steel versions.
PVDF sealing inserts are recommended for applications at very high temperatures.
In addition to numerous sizes and variants for many clamping ranges,
HUMMEL also offers multi and flat cable inserts.
Hummel cable gland（Ex accessories）上海颐品自动化科技有限公司(Hummel电缆接头代理商)

Here you will find plugs made of polyamide, brass and stainless steel as well as other accessories for

all series of our cable glands for explosion-proof areas with protection type "e" and/or "d".

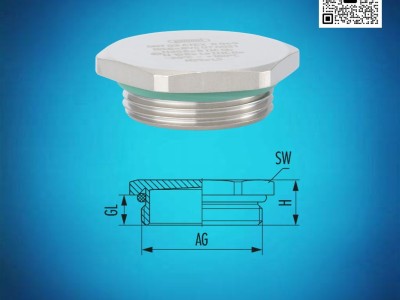

Plug V-Ms-Ex with o-ring

Screw plug for hazardous areas made of brass

Material	Nickel-plated brass
Material o-ring	NBR
Protection class	IP68 - 10bar/30min, IP 69 K

Ex-protection level	II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb
Variant	PG, Metric

Temperature range	AG	GL (mm)	H (mm)	SW (mm)	Item-No
-20°C to +95°C	PG 7	5	8	14	1.197.0700.01
-20°C to +95°C	PG 9	6	9	17	1.197.0900.01
-20°C to +95°C	PG 11	6	9.5	20	1.197.1100.01
-20°C to +95°C	M12 x 1,5	6.5	9.5	14	1.197.1200.50
-20°C to +95°C	PG 13,5	6.5	10	22	1.197.1300.01
-20°C to +95°C	PG 16	6.5	10	24	1.197.1600.01
-20°C to +95°C	M16 x 1,5	6	9	19	1.197.1600.50
-20°C to +95°C	M20 x 1,5	6	9.5	22	1.197.2000.50
-20°C to +95°C	PG 21	7	10.5	30	1.197.2100.01
-20°C to +95°C	M25 x 1,5	7	10.5	30	1.197.2500.50
-20°C to +95°C	PG 29	8	12.5	41	1.197.2900.01
-20°C to +95°C	M32 x 1,5	8	12.5	41	1.197.3200.50
-20°C to +95°C	PG 36	8	13	50	1.197.3600.01
-20°C to +95°C	M40 x 1,5	8	13	46	1.197.4000.50
-20°C to +95°C	PG 42	9	15	58	1.197.4200.01
-20°C to +95°C	PG 48	10	16.5	65	1.197.4800.01
-20°C to +95°C	M50 x 1,5	9	15	55	1.197.5000.50
-20°C to +95°C	M63 x 1,5	10	16.5	70	1.197.6300.50

Plug V-Ms-FKM-Ex with o-ring

Screw plug for hazardous areas made of brass

Material	Nickel-plated brass
Material o-ring	FKM
Protection class	IP68 - 10bar/30min, IP 69 K

Ex-protection level	II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb
Variant	Metric

Temperature range	AG	GL (mm)	H (mm)	SW (mm)	Item-No
-20°C to +180°C	M12 x 1,5	6.5	9.5	14	1.198.1200.50
-20°C to +180°C	M16 x 1,5	6	9	19	1.198.1600.50
-20°C to +180°C	M20 x 1,5	6	9.5	22	1.198.2000.50
-20°C to +180°C	M25 x 1,5	7	10.5	30	1.198.2500.50
-20°C to +180°C	M32 x 1,5	8	12.5	41	1.198.3200.50
-20°C to +180°C	M40 x 1,5	8	13	46	1.198.4000.50
-20°C to +180°C	M50 x 1,5	9	15	55	1.198.5000.50
-20°C to +180°C	M63 x 1,5	10	16.5	70	1.198.6300.50

Plug V-Ms-VMQ-Ex with o-ring

Screw plug for hazardous areas made of brass

Material	Nickel-plated brass
Material o-ring	VMQ (silicone)
Protection class	IP68 - 10bar/30min, IP 69 K

Ex-protection level	II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb
Variant	Metric

Temperature range	AG	GL (mm)	H (mm)	SW (mm)	Item-No
-60°C to +180°C	M12 x 1,5	6.5	9.5	14	1.199.1200.50
-60°C to +180°C	M16 x 1,5	6	9	19	1.199.1600.50
-60°C to +180°C	M20 x 1,5	6	9.5	22	1.199.2000.50
-60°C to +180°C	M25 x 1,5	7	10.5	30	1.199.2500.50
-60°C to +180°C	M32 x 1,5	8	12.5	41	1.199.3200.50
-60°C to +180°C	M40 x 1,5	8	13	46	1.199.4000.50
-60°C to +180°C	M50 x 1,5	9	15	55	1.199.5000.50
-60°C to +180°C	M63 x 1,5	10	16.5	70	1.199.6300.50

HUMMEL offers a huge portfolio of cable glands for industrial applications.

High quality materials and innovative technology guarantee a quality which meets the highest demands.

• In the common sizes M16, M20, M25, M32, M40, M50, M63 and other sizes
• Materials: bl (brass/stainless steel) and plastic (polyamide)
• RoHS and REACH / SVHC compliant
• Free from conflict materials
• Halogen- and phosphorus-free
• Fire protection class V0 according to UL 94
• Outdoor resistant polyamide according to UL 746C f1 (HSK-K black)
• Protection class IP54, IP 66, IP 68 up to 10 bar and IP 69K according to DIN EN 60529
• Vibration protection of the union nut
• Quick mounting and optimum shield connection (EMC version)

HSK-K-Ex-Active: Hummel Cable glands（上海颐品自动化）

• Material: polyamide
• Sizes: M12 – M63, NPT 3/8" – NPT 1 1/2"
• Type of protection Ex e according to EN 60079-0 and EN 60079-7
• Latest approvals according to ATEX and IECEx standards
• Halogen-free
• Can be used in zone 1 and zone 20
• Also with multi- and flat cable insert

---

HSK-M-Ex: Hummel Cable glands（上海颐品自动化）

• Material: nickel-plated brass, INOX 1.4305
• Sizes: M12 – M63, PG 7 – PG 48, NPT 3/8" – NPT 1"
• Type of protection Ex e according to EN 60079-0 and EN 60079-7
• EMC, PVDF and MZ versions available
• Various connection thread lengths
• Also with multi- and flat cable insert

---

HSK-M-Ex-d: Hummel Cable glands（上海颐品自动化）

• Material: nickel-plated brass, INOX 1.4404
• Sizes: M12 – M40, NPT 3/8" – NPT 1 1/2"
• Type of protection Ex d according to EN 60079-0 and EN 60079-1
• Various connection threads in metric and NPT
• MZ versions available (extra strain relief)
